Detail Produk
Tempat asal: Henan, Tiongkok
Nama merek: Zhenglan cable
Sertifikasi: 3C，ISO 9001:2015，ISO 14001:2005
Nomor model: 0,6/1kv cu/xlpe/pvc 36Cx1sqmm kabel kontrol tanpa pelindung IEC60502-1
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1000 meter
Harga: Bisa dinegosiasikan
Kemasan rincian: Gulungan atau Pelanggan
Waktu pengiriman: 5~10 HARI
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 82.000 KM/Tahun
Nama: |
kabel kontrol |
Konduktor: |
Tembaga |
Isolasi: |
XLPE |
Sarung: |
PVC |
Aplikasi: |
: digunakan untuk instalasi & penyambungan peralatan listrik, statis maupun dinamis |
Warna: |
Hitam |
Inti: |
Banyak |
Voltase: |
0.6/1KV |
Nama: |
kabel kontrol |
Konduktor: |
Tembaga |
Isolasi: |
XLPE |
Sarung: |
PVC |
Aplikasi: |
: digunakan untuk instalasi & penyambungan peralatan listrik, statis maupun dinamis |
Warna: |
Hitam |
Inti: |
Banyak |
Voltase: |
0.6/1KV |

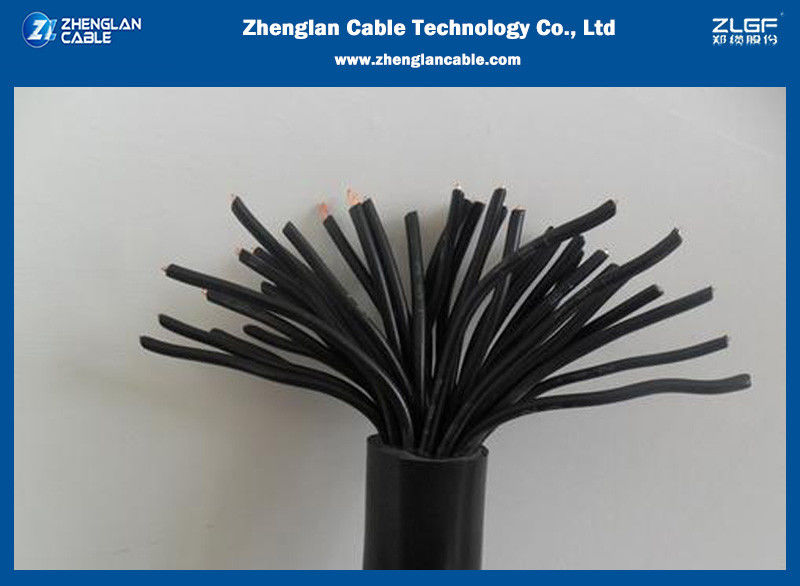

0.6/1kv cu/xlpe/pvc 36Cx1sqmm kabel kontrol tak terlindung IEC60502-1 pengenalan
Ø Standar:IEC60227, IEC60502-1
Ø Konduktor:Konduktor tembaga bergaris telanjang kelas 5 IEC228
Ø Isolasi/penutup: PVC atau PVC tahan api dan sifat lainnya
Ø Tegangan nominal: 450/750V,600/1000V
Ø Kisaran suhu: 0°C sampai 70°C, 0-90°C
Ø Aplikasi: Digunakan sebagai kabel daya dan sambungan dalam teknik mesin untuk mesin alat, unit kontrol, jalur produksi,
peralatan transportasi, jalur konveyor dan perakitan serta konstruksi pabrik
Ø Catatan:Aplikasi:Untuk sirkuit kontrol utama dan sub utama (aplikasi tetap) Industrial dan Commercialcable dapat dengan perisai kawat tembaga dipintal atau baja dan fitur ditingkatkan lainnya
Aplikasi: Untuk sirkuit kontrol utama dan sub-main (aplikasi tetap)
0.6/1kv cu/xlpe/pvc 36Cx1sqmm kabel kontrol tak terlindung IEC60502-1 parameter referensi
| Potongan silang (mm)2) | Konstruksi konduktor (No/mm) | Ketebalan isolasi (mm) | Ketebalan isolasi (mm) | Ketebalan sarung (mm) | Ketebalan sarung (mm) | Diameter total maksimum (mm) | Diameter total maksimum (mm) | Resistensi Max.D.C pada 20°C MΩ/Km |
| 450/750V | 6000/1000V | 450/750V | 6000/1000V | 450/750V | 6000/1000V | |||
| 2X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.3 | 9.3 | 24.5 |
| 2X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 7.6 | 9.6 | 24.5 |
| 2X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 18.1 |
| 2X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 18.1 |
| 2X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 8.6 | 10.2 | 12.1 |
| 2X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 8.9 | 10.5 | 12.1 |
| 2x2.5 | 1/1.78 | 0.7 | 0.8 | 1.2 | 1.8 | 9.8 | 11.0 | 7.41 |
| 2x2.5 | 7/0.68 | 0.7 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 2X4 | Setengah.25 | 0.8 | 1.0 | 1.2 | 1.8 | 10.7 | 12.7 | 4.61 |
| 2X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.3 | 4.61 |
| 2X6 | Setengah.76 | 0.8 | 1.0 | 1.2 | 1.8 | 11.7 | 13.7 | 3.08 |
| 2X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 12.4 | 14.4 | 3.08 |
| 2X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 15.7 | 16.3 | 1.83 |
| 3X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 24.5 |
| 3X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 24.5 |
| 3X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.1 | 18.1 |
| 3X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.4 | 10.4 | 18.1 |
| 3X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.6 | 12.1 |
| 3X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 9.4 | 11.0 | 12.1 |
| 3x2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 3x2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 10.8 | 12.0 | 7.41 |
| 3X4 | Setengah.25 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.4 | 4.61 |
| 3X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.9 | 14.0 | 4.61 |
| 3X6 | Setengah.76 | 0.8 | 1.0 | 1.2 | 1.8 | 13.0 | 14.5 | 3.08 |
| 3X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 13.8 | 15.2 | 3.08 |
| 3X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 16.6 | 17.2 | 1.83 |
| 4X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.4 | 24.5 |
| 4X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.7 | 24.5 |
| 4X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.8 | 18.1 |
| 4X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.0 | 11.2 | 18.1 |
| 4X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.7 | 11.4 | 12.1 |
| 4X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 10.1 | 11.8 | 12.1 |
| 4X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 11.2 | 12.4 | 7.41 |
| 4X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 11.8 | 13.0 | 7.41 |
| 4X4 | Setengah.25 | 0.8 | 1.0 | 1.5 | 1.8 | 12.9 | 14.5 | 4.61 |
| 4X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 13.6 | 15.2 | 4.61 |
| 4X6 | Setengah.76 | 0.8 | 1.0 | 1.5 | 1.8 | 14.1 | 15.7 | 3.08 |
| 4X6 | 7/1.04 | 1.0 | 1.0 | 1.5 | 1.8 | 15.0 | 16.6 | 3.08 |
| 4X10 | 7/1.35 | 1.0 | 1.0 | 1.5 | 1.8 | 18.2 | 18.8 | 1.83 |
| 5X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.9 | 11.1 | 24.5 |
| 5X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.2 | 11.5 | 24.5 |
| 5X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 9.3 | 11.6 | 18.1 |
| 5X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.7 | 12.0 | 18.1 |
| 5X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 10.5 | 12.2 | 12.1 |
| 5X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 11.0 | 12.7 | 12.1 |
| 5X2.5 | 1/1.78 | 0.8 | 0.8 | 1.5 | 1.8 | 12.7 | 13.3 | 7.41 |
| 5X2.5 | 7/0.68 | 0.8 | 0.8 | 1.5 | 1.8 | 13.4 | 14.0 | 7.41 |
| 5X4 | Setengah.25 | 0.8 | 1.0 | 1.5 | 1.8 | 14.0 | 15.7 | 4.61 |
| 5X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 14.8 | 16.5 | 4.61 |
| 5X6 | Setengah.76 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 17.1 | 3.08 |
| 5X6 | 7/1.04 | 0.8 | 1.0 | 1.5 | 1.8 | 16.3 | 18.0 | 3.08 |
| 5X10 | 7/1.35 | 1.0 | 1.0 | 1.7 | 1.8 | 20.3 | 20.5 | 1.83 |
| 6X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.9 | 24.5 |
| 6X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.9 | 12.3 | 24.5 |
| 6X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.4 | 18.1 |
| 6X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 10.5 | 12.9 | 18.1 |
Mengapa Memilih Kabel Zhenglan:
Aku tidak tahu.
Mengapa memilih Zhenglan Cable Technology Co., Ltd
